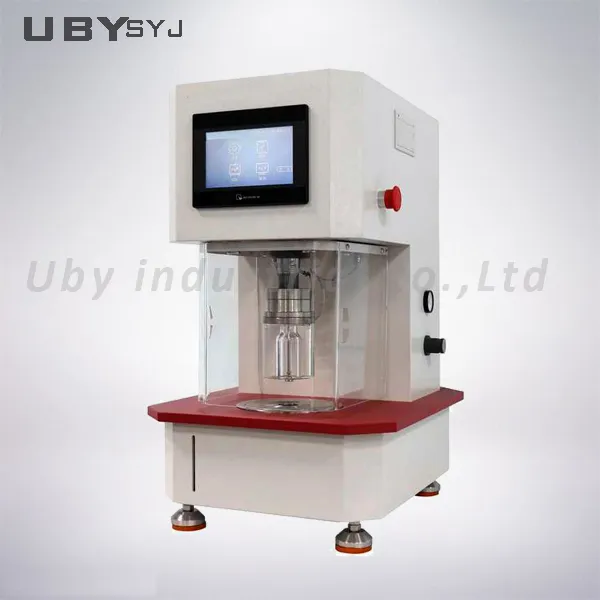

UP-8011 High Precision Textile Fabric Bursting Strength Tester Bursting Strength Tester Diaphragm

Name: UP8011 High Precision Textile Fabric Bursting Strength Tester Bursting Strength Tester Diaphragm
Brand: YOUBI
Price: 1 USD

Cheap UP-8011 High Precision Textile Fabric Bursting Strength Tester Bursting Strength Tester Diaphragm for sale

Certification : CE,ISO

MOQ : 1 Unit

Price : Negotiable

Brand Name : YOUBI

Model Number : UP-8011

Place of Origin : CHINA

Payment Terms : D/P,T/T,Western Union,Paypal,Money Gram

Supply Ability : 30 Unit/month

Delivery Time : 5-10 work days

Packaging Details : Professional export packing

Product name : Fabric Bursting Strength Tester

Model NO. : UP-8011

Test Range : 2.00MPa~10.00MPa

Minimum Scale Value : 0.001MPa~0.003MPa

Measuring Range : Full Scale 1% ~ 100%

Pressure Accuracy : ≤ 0.2% Fs

Test Area : 7.3 Cm² (Dia.30.5mm), 10 Cm² (Dia.35.7mm

Pressure Units : Kpa, Kg / Cm2, Bar, Lb / In2

Power : AC220V / 50Hz

Contact Now

Diaphragm Bursting Strength Testing Machine Textile Fabric Bursting Tester

Fabric Bursting Tester is mainly used to measure the physical properties of textiles, including bursting strength and bursting expansion. It is widely used in textile manufacturing of knitted fabrics, woven fabrics, woven fabrics, non-woven fabrics, laminated fabrics, and other processes.

In addition, the tester can also be used to measure the mechanical properties of various materials such as plastic films, composite films, and paper.

Standards:
GB / T 7742 Textiles - Bursting properties - Part 1: Determination of burst strength and expansion of textile fabrics.
ISO 13938.1, ASTM D3786, BS 4768, JIS L 1018.6.17

Testing Principles:

The testing principle is to clamp the sample on an extendable membrane and apply liquid or gas pressure to expand the membrane and sample until the sample ruptures, thereby measuring its bursting strength and bursting expansion

The specific methods include hydraulic method and pneumatic method. Hydraulic method expands the diaphragm and sample by increasing the volume of liquid, while pneumatic method achieves the same effect by increasing the volume of gas

Instrument Features:
1, using hydraulic method, in line with the international standard.
2, touch screen control, the interface is simple and easy to understand, easy to operate intuitive, touch sensitive.
3, pneumatic clamping, clamping evenly, and adjust the fixture pressure, to avoid the sample slip or damage, easy to use.
4, the test cover for the high transparent plexiglass, built-in LED lighting, can clearly observe the experimental sample process. Which is a magnet Installation, replacement easy disassembly.
5, automatic induction blasting system, sensitive and reliable.
6, outside the organic glass cover, to prevent the folder wounding, the use of more secure.
7, the use of AC servo drive system, synchronous pulley drive, the instrument running low noise, wide speed range, high operating accuracy.
8, the use of high-speed AD and processor, sampling frequency is high, high test accuracy.

Technical Parameters:

Test range	2.00Mpa	10.00Mpa
Minimum scale value	0.001Mpa	0.003Mpa
Measuring range	full scale 1% ~ 100%
Pressure accuracy	≤ 0.2% FS
Accuracy of expansion height	≤ 0.2% FS

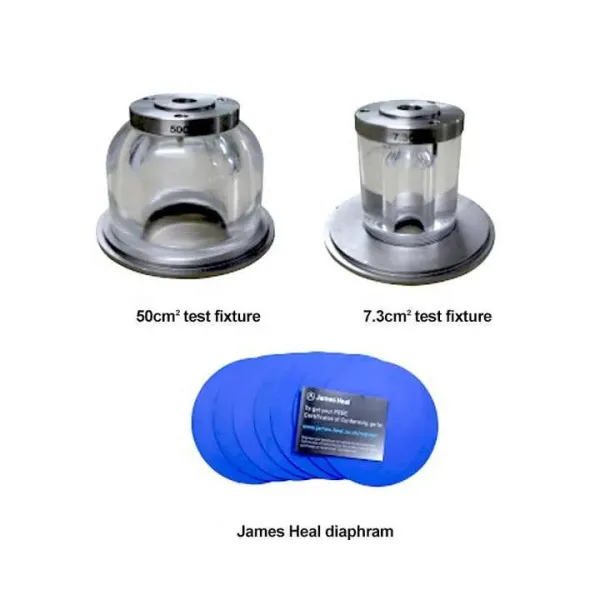

Test area	7.3 cm² (dia.30.5mm), 10 cm² (dia.35.7mm) 50 cm² (dia. 79.8 mm), 100 cm² (dia. 112.8 mm)
The maximum expansion	75
Pressure rate	20-600ml / min
Pressure units	kPa, kg / cm2, bar, lb / in2
Power	AC220V / 50Hz
Dimensions	550 × 450 × 700mm

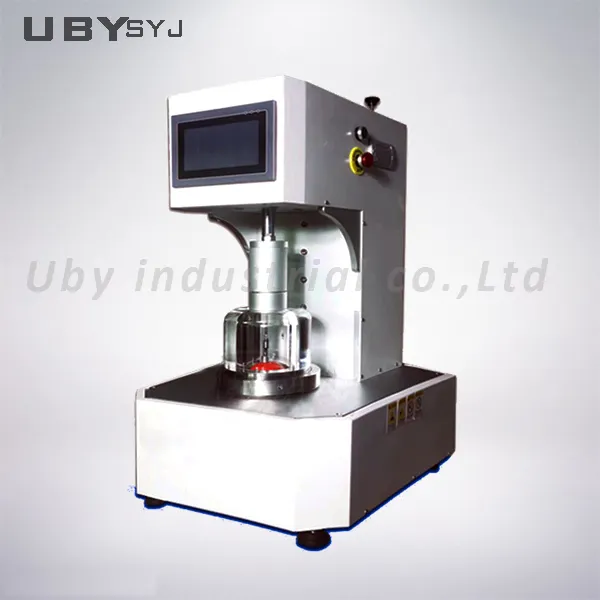

UP-8011 High Precision Textile Fabric Bursting Strength Tester Bursting Strength Tester Diaphragm

our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.

2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.

4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
